مشخصات فنی
مناسب برای صفحه چاپ رنگی و مونوکروم
امکان چاپ قطعات پیجیده و ظریف
رزین UV با طول موج 405 نانومتر
قیمت محصول
درصد تخفیف %0
پیش فروش
پیش پرداخت 0%
قیمت نهایی
رزین سخت ایسان
eSUN Tough Hard Resin
رزین سخت ایسان با نام Hard-Tough resin یکی از رزین های مهندسی بسیار پرکاربرد با خواص مواد ABS می باشد که استحکام و مقاومت به ضربه بسیار بالایی دارد. همچنین برای پرینت قطعات صنعتی با طول عمر بالا و یا قطعات مونتاژی در مکانیزم های حرکتی می توان از رزین ABS ایسان استفاده کرد. با توجه به چگالی و ویسکوزیته بسیار عالی قابلیت استفاده در تمامی پرینتر های سه بعدی رزینی LCD را دارد و تفاوتی در صفحه چاپ رنگی و مونوکروم ندارد و کیفیت سطح فوق العاده ای را به ارمغان می آورد.
انواع پرینتر های سه بعدی رزینی برند فروزن, انیکیوبیک, لانگر و کریلیتی مدل های Sky One و Sky Halot با رزین سخت eSUN همخوانی دارند و جهت چاپ بهتر می توانید تنظیمات چاپ را از واحد فنی گروه صنعتی آذرین جویا شوید. تنظیمات پرینت براساس نوع قطعه, مدل پرینتر رزینی و دقت کار محاسبه می شود. کاربر پرینتر سه بعدی رزینی باید زمان تابش و زمان تابش از کف را متناسب با نوع رزین و نوع پرینتر رزینی انتخاب نماید. یکی از چالش های مهم در پرینت با رزین های ABS چیدمان صحیح قطعات می باشد که جهت راهنمایی بهتر می توانید به بخش مطالب آموزشی وبسایت Azarin3D مراجعه نمایید.
چه نکاتی را قبل از پرینت با پرینتر سه بعدی رزینی باید رعایت کنیم؟
1- حتما قبل از ریختن رزین داخل مخزن, بطری رزین را تکان دهیم و سپس بعد از 5 الی 10 دقیقه رزین را داخل مخزن بریزیم.
2- از تمیز و سالم بودن فیلم FEP مخزن اطمینان حاصل نماییم.
3- مطمئن شوید صفحه کار یا همان Platform کالیبره هست و محکم بسته شده باشد.
4- در حین کار, بازرسی چشمی از نحوه عملکرد پلیت به صورت تناوبی انجام شود.
5- بعد از اتمام کار, مدل پرینت شده را با الکل ایزوپروپیل شستشو دهید و خشک کنید.
6- توصیه می شود فطعات رزینی بعد از پرینت زیر نور UV قرار بگیرند.
7- بعد از کار, بالا و پایین صفحه کار را با دستمال و الکل حتما تمیز کنید.
-در صورت ایجاد هر گونه مشکل و یا خطای چاپی می توانید با پشتیبانی آذرین تماس حاصل نمایید.
چرا از رزین سخت به جای رزین استاندارد استفاده کنیم؟
اگر بدنبال استحکام و دوام بیشتری هستید اولین قدم انتخاب رزین های سخت یا همان ABS است. هر چند که تنوع رنگ پایین تری نسبت به رزین های مدلسازی دارند ولی پارامتر های مکانیکی قوی تری از خود نشان می دهند. رزین هارد به دلیل سختی و استحکام بالا, مقاومت بیشتری در برابر شکنندگی و خوردگی از خود نشان می دهد و برای انجام عملیات مکانیکی همچون قلاویز کاری و سوراخکاری مناسب تر هست. رزین سخت ایسان خواص مکانیکی بالایی دارد و نسبت به رزین شفاف و استاندارد دارای دقت ابعادی بالاتر و شرینک بهتری دارد.
پارامتر های چاپ رزین سخت ایسان:
1- ضخامت لایه: 25 تا 50 میکرون
2- تعداد لایه های کف: 3 تا 5 لایه
3- زمان تابش لایه های کف: 20 تا 30 ثانیه
4- زمان تابش استاندارد: 5 تا 10 ثانیه
متوسط سرعت Lifting بین 70-80 میلیمتر بر دقیقه است و متوسط سرعت Retract بین 150 تا 180 میلیمتر بر دقیقه است. حداکثر فاصله محور Z در lifting بین 5 تا 7 میلیمتر است. تنظیمات ارائه شده بر اساس ضخامت 0.05 میلیمتر بر هر لایه می باشد.
سایر رزین های سخت AZARIN3D

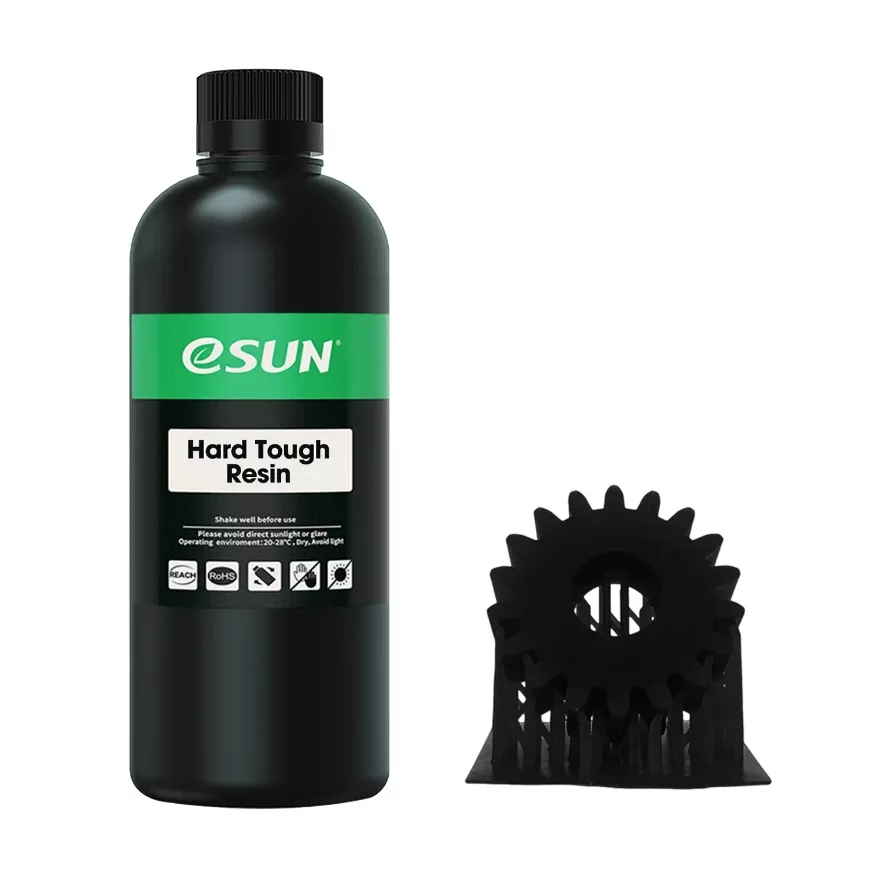

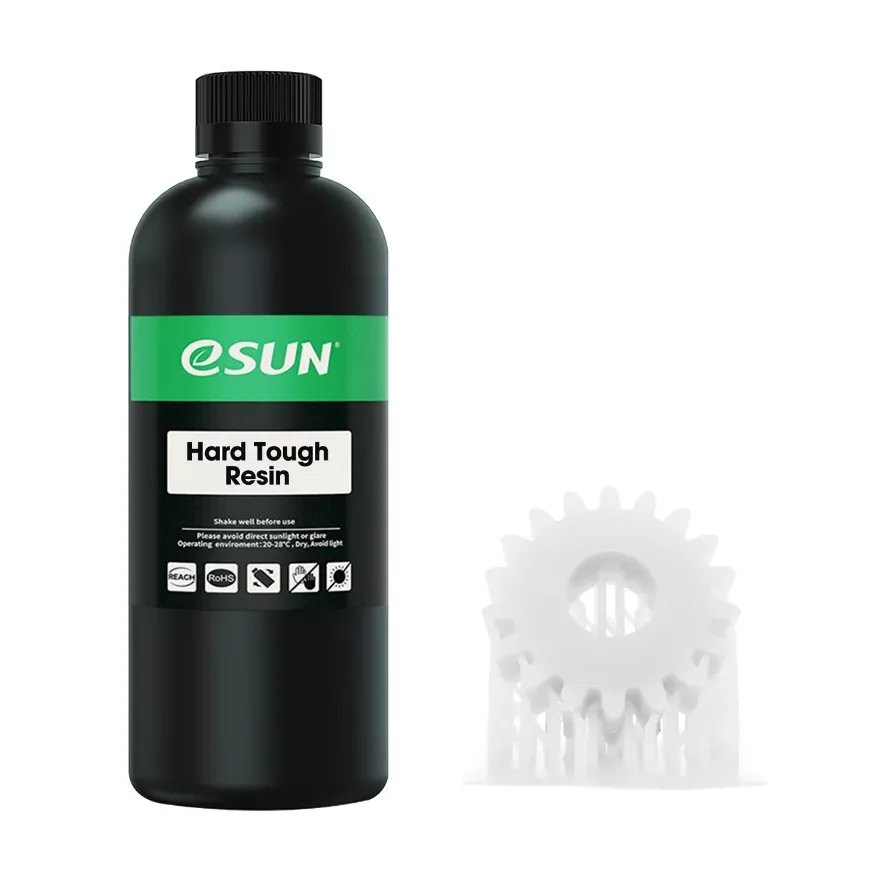

eSun Tough resin with high physical strength, high hardness and high toughness similar to ABS filament. Experiments have shown that the 3D model produced by eSUN's Hard-Tough Resin product, such as the carrier gear, can withstand high impact forces and other high-strength mechanical pressures. While using electric drills to test the toughness of the resin, there's no breakage on the model even after a few drills. For the application field, the material needs to have extremely high stress and strain performance, and that's why eSUN developed Hard-Tough Resin Hard-Tough Resin is a urethane acrylate photocurable resin suitable for LCD printers.
To ensure the good quality and stability, eSUN is fully formulated with high quality imported raw materials with the following advantages
High impact strength
Higher shock resistance than normal resin
Rigid resin, excellent mechanical properties such as hardness, tensile and bending
High surface hardness and wear resistanc
Print setting
Applicable wavelength: 395-405nm
Operating temperature: 18-35 ° C
Exposure time: 20-30s on the bottom layer, 8s on the normal layer
Pls adjust the setting until you get the best print performance
Instructions for use
(1) Before use
Shake the liquid resin before use
Clean the resin tank and the molding platform to keep the bottom of the resin tank in light transmission
Pls wear gloves and stay in ventilated environment
(2) When using
Unscrew the cap and add it to the resin tank according to the equipment requirements
Select the correct print parameters and settings for printing
(3) After use
After printing, please use the matching tools for post-processing, including blade, diagonal pliers, tweezers, containers, gloves; ethanol (≥95%), lactate or isopropyl alcohol cleaning solution; high pressure mercury lamp or LED lamp (launch peak is between 360-405 nm); oven.
(4) Post-processing steps
A. Remove the printed model from the molding platform with a blade
B, Submerge the model in the cleaning solution, rinsed or ultrasonically washed for 1 minute, then taken out and drained
C. Submerge the model completely in distilled water, uniformly irradiated with high-pressure mercury lamp, LED lamp, or exposed to sunlight
D, Place the model in an oven, set to heat at 50℃ for 20 minutes, and then naturally cooled to room temperature
E. Proper processing, such as removing support, polishing, coloring, etc
Precautions
Seal at room temperature and protect from light to avoid high temperature or sunlight
the recommended temperature is 18-35 ° C, a low temperature may affect the printing effect, the resin can be properly preheated before use (not more than 60 ° C)
If the resin pigment settles, it can be used after stirring or shaking
To ensure the ideal performance of the curable material, it is necessary to control the intensity and time of the light source after curing, so it is recommended that
The intensity of mercury lamp or LED light source is 5-10mW/m2, and the duration is no more than 1 hour (self-regulation) The exposure time in the sun (summer) is around 1 hour Proximity
or long-term exposure under strong light sources such as high-power high-pressure mercury lamps is prohibited

رزین سخت ایسان Hard-Tough Resin eSUN
سختترین رزین ایسان با خاصیت ABS


رزین سخت ایسان | eSUN Tough Hard ABS-like Resin
